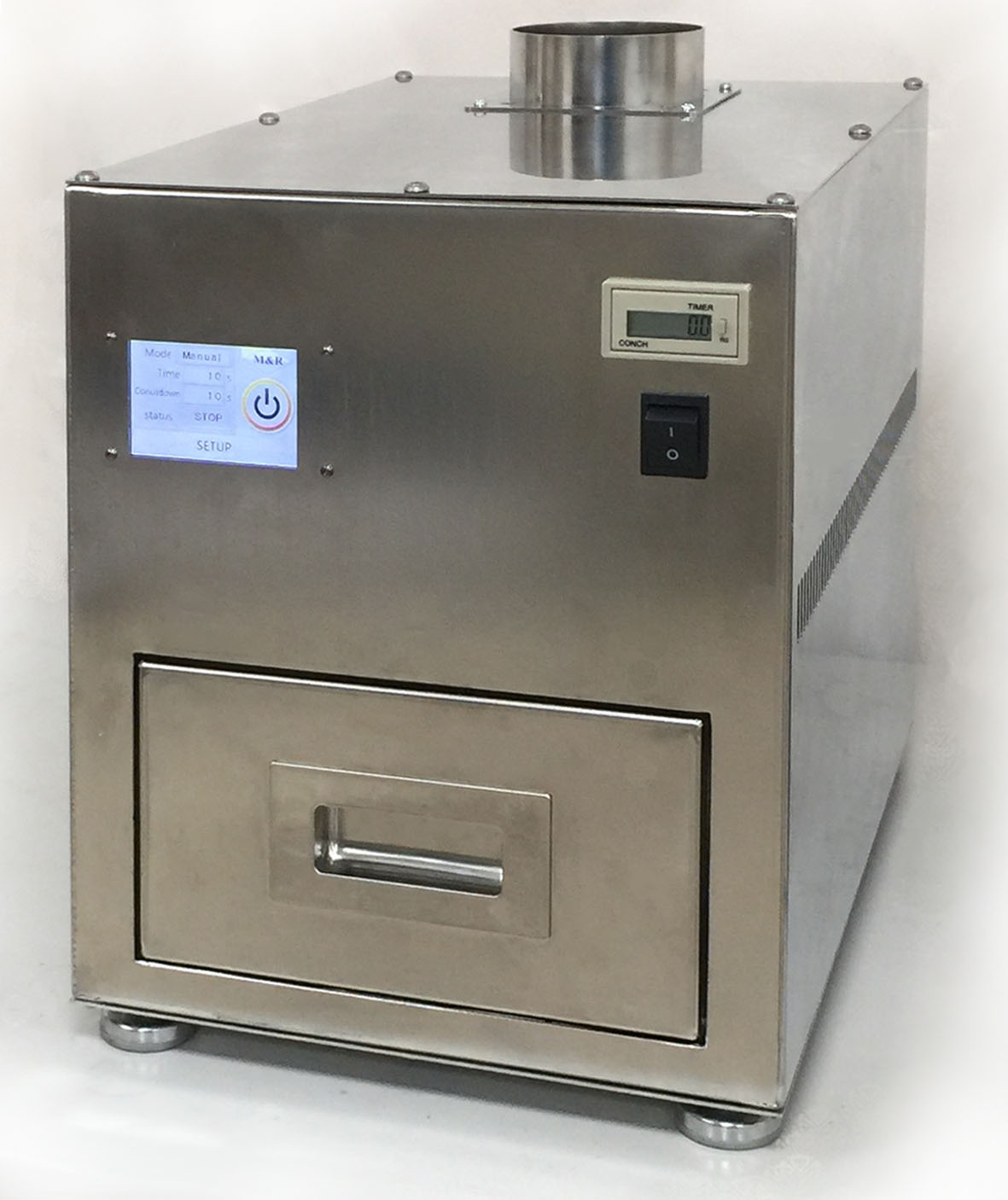

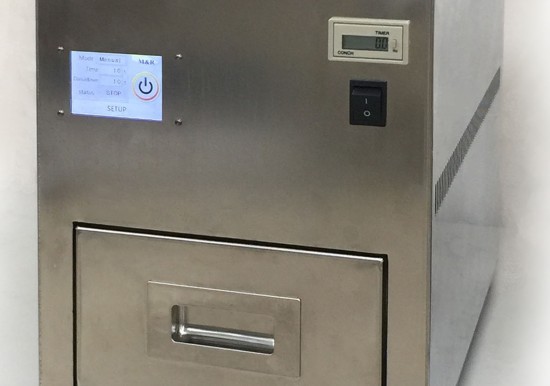

TH1515 Drawer Type UV Curing Box
▲UV wavelength：300 ~ 500 nm (UVA)
▲Working Area：150 mm* 150 mm
▲Application：Suitable for material verification and laboratory use
▲Feature：Adopt High quality UV LED
▲Feature：Automatic gate shading design
Contact
▲Working Area：150 mm* 150 mm
▲Application：Suitable for material verification and laboratory use
▲Feature：Adopt High quality UV LED
▲Feature：Automatic gate shading design
specification
【Specification】
| Power | 400-700 W |
| UV Source | UV Lamp |
| Output Intensity | 150-250 mW/cm2 |

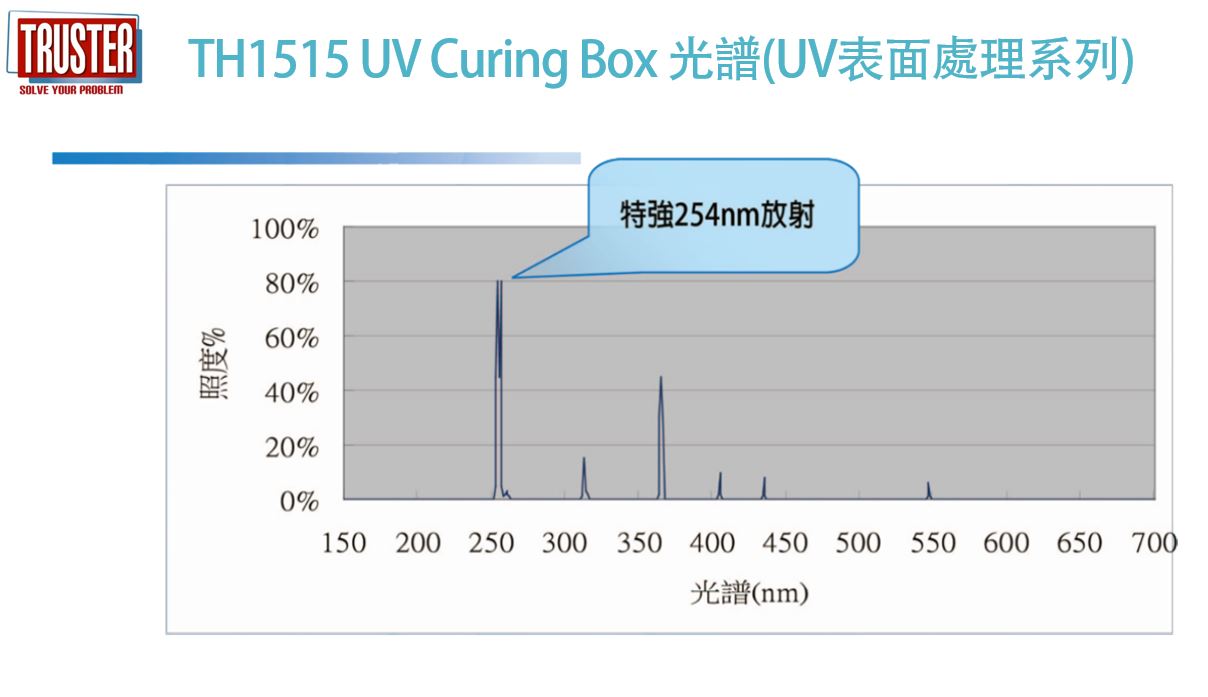

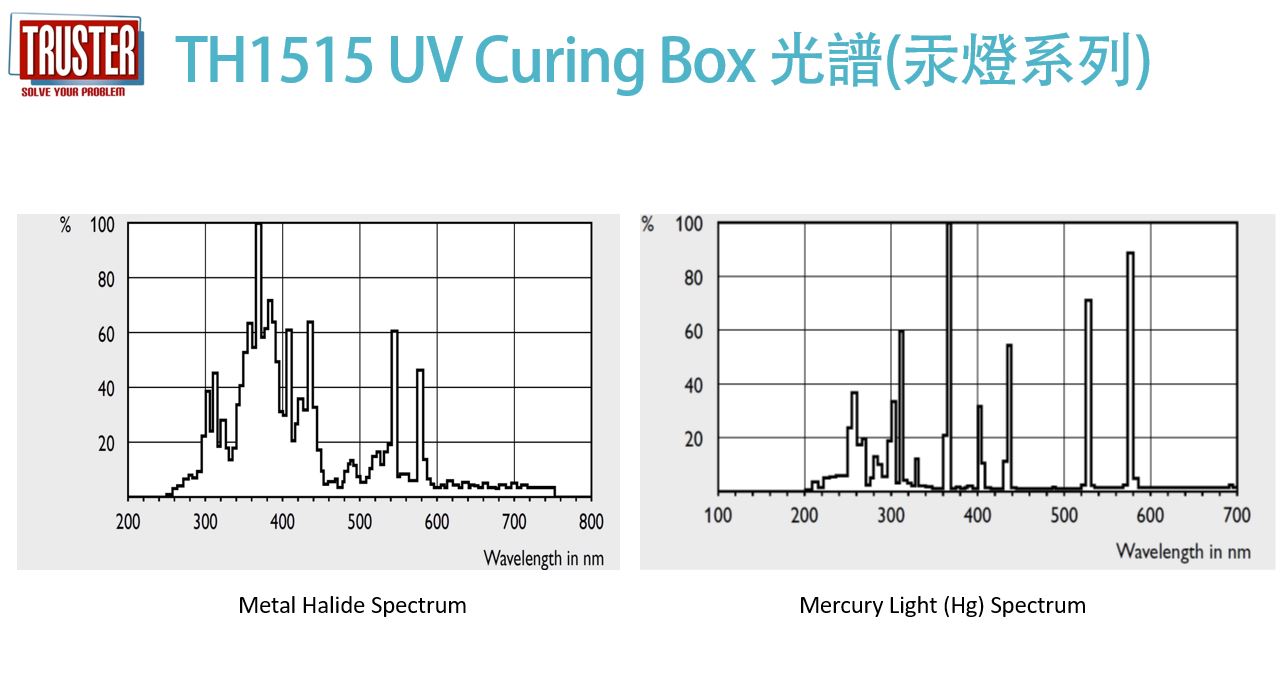

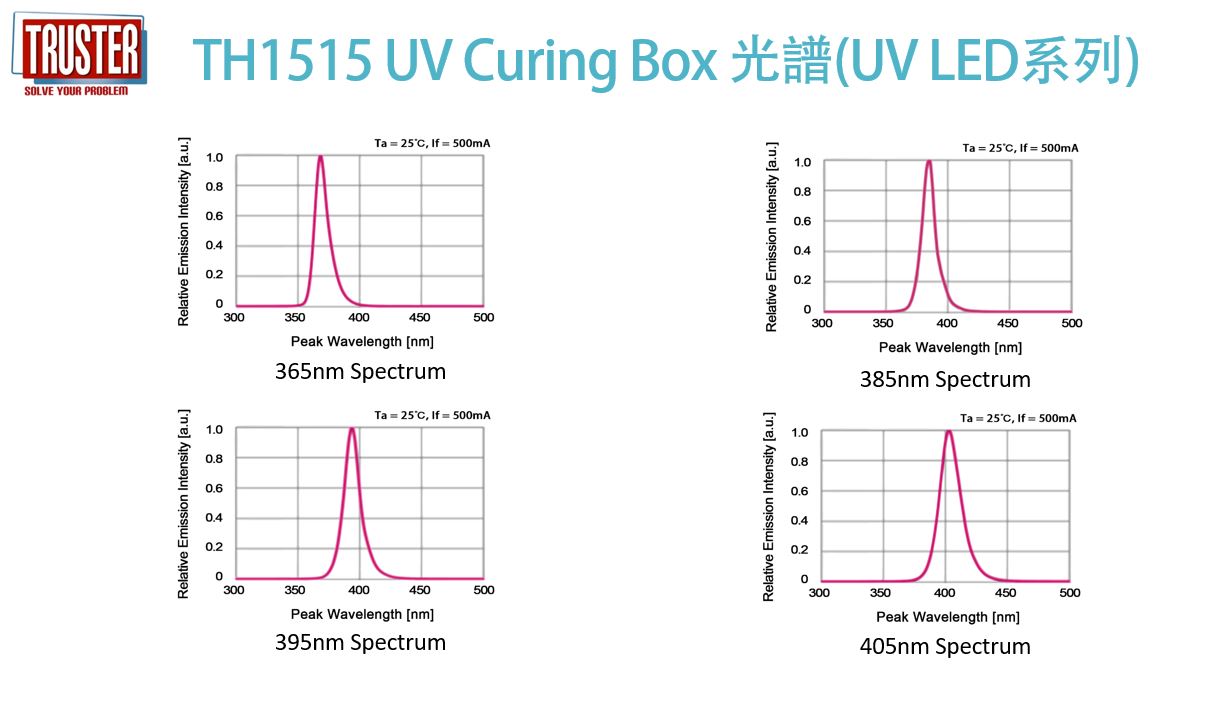

| Wavelength range | 300-500 nm (UVA) |
| Working Distance | 50-150 mm (Adjustable) |
| Curing Area | 150mm x 150mm (Max: 6" wafer) |
| Housing Dimension | 520mm x 500mm x 500mm |
| Curing Champer Dimension | 150mm x 150mm x 100mm |
