TUL spot Series
♦ High efficiency curing : shorten process duration
Contact
♦ Special design for fast curing, customized upon request.
♦ Competible with all kinds of production line.
♦ Competible with automatic printing production line.
specification
【Light specification】

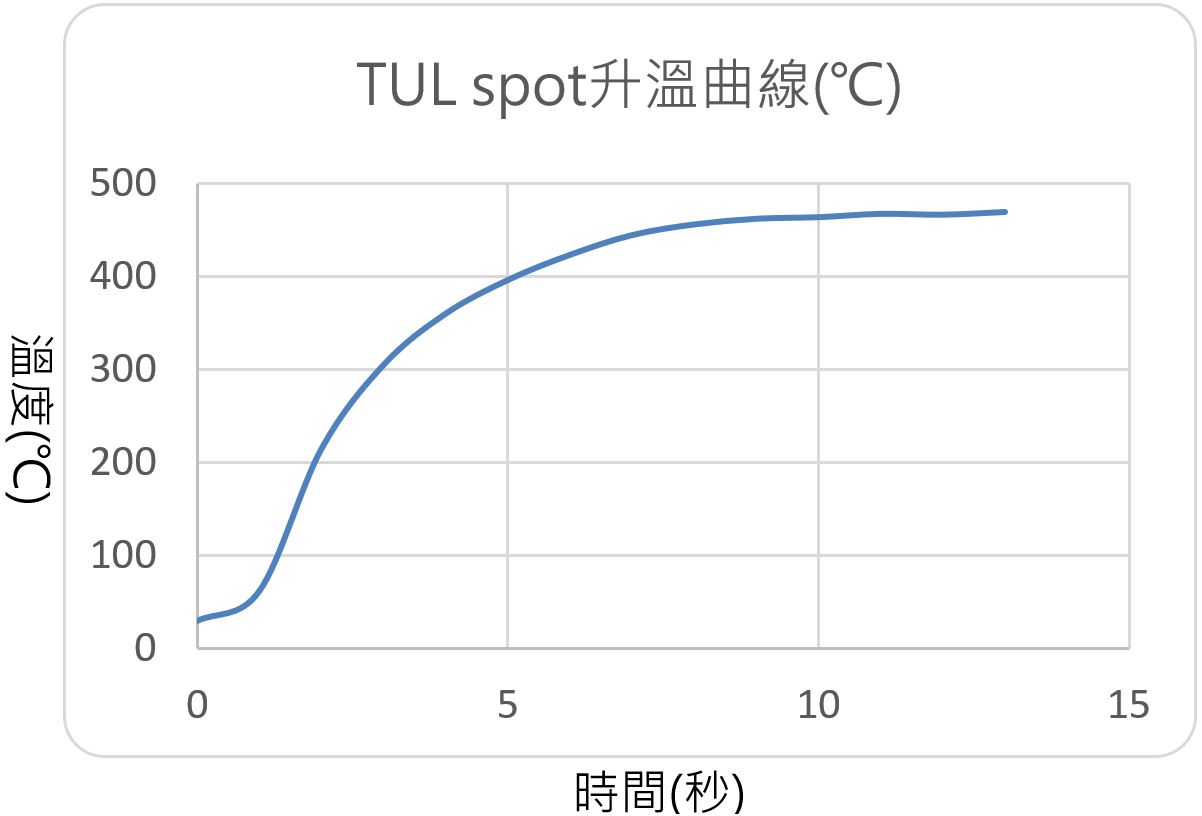

【TUL spot light temperature curve】
| Dimension | 65 x 65 x 120 | mm |
| Spot size | Ø10 | mm |
| Weight | 800 | g |
【Power specification】
| Dimension | 250 x 170 x 150 | mm |
| Input voltage | 110 / 220 | V |
| Weight | 3 | kg |
| Power | 200 | W |
| Timer range | 0.1~999 | sec |
| Output override | 20~100 | % |
| Controller | PLC |
【TUL spot light temperature curve】
