UV Curing Box module

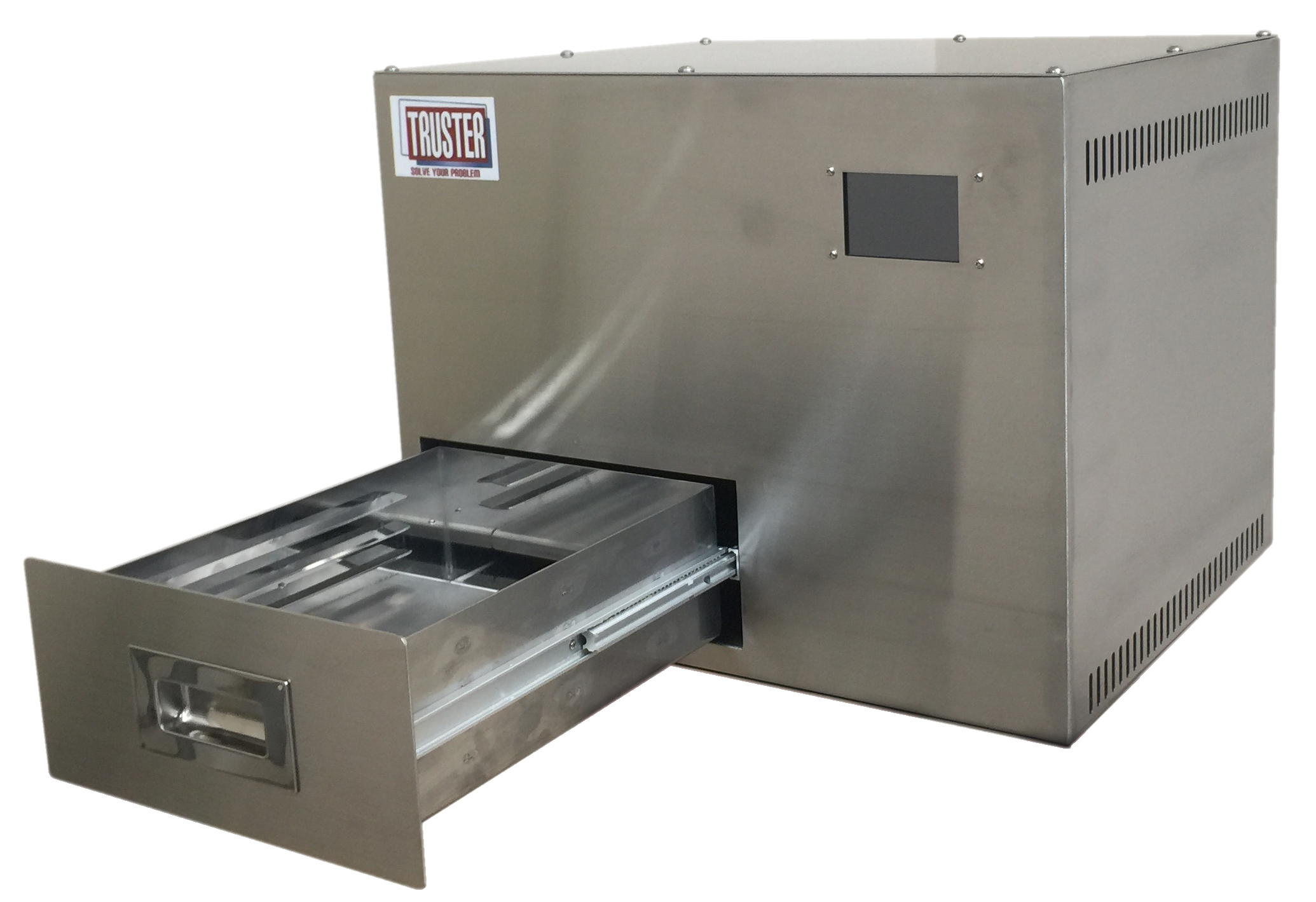

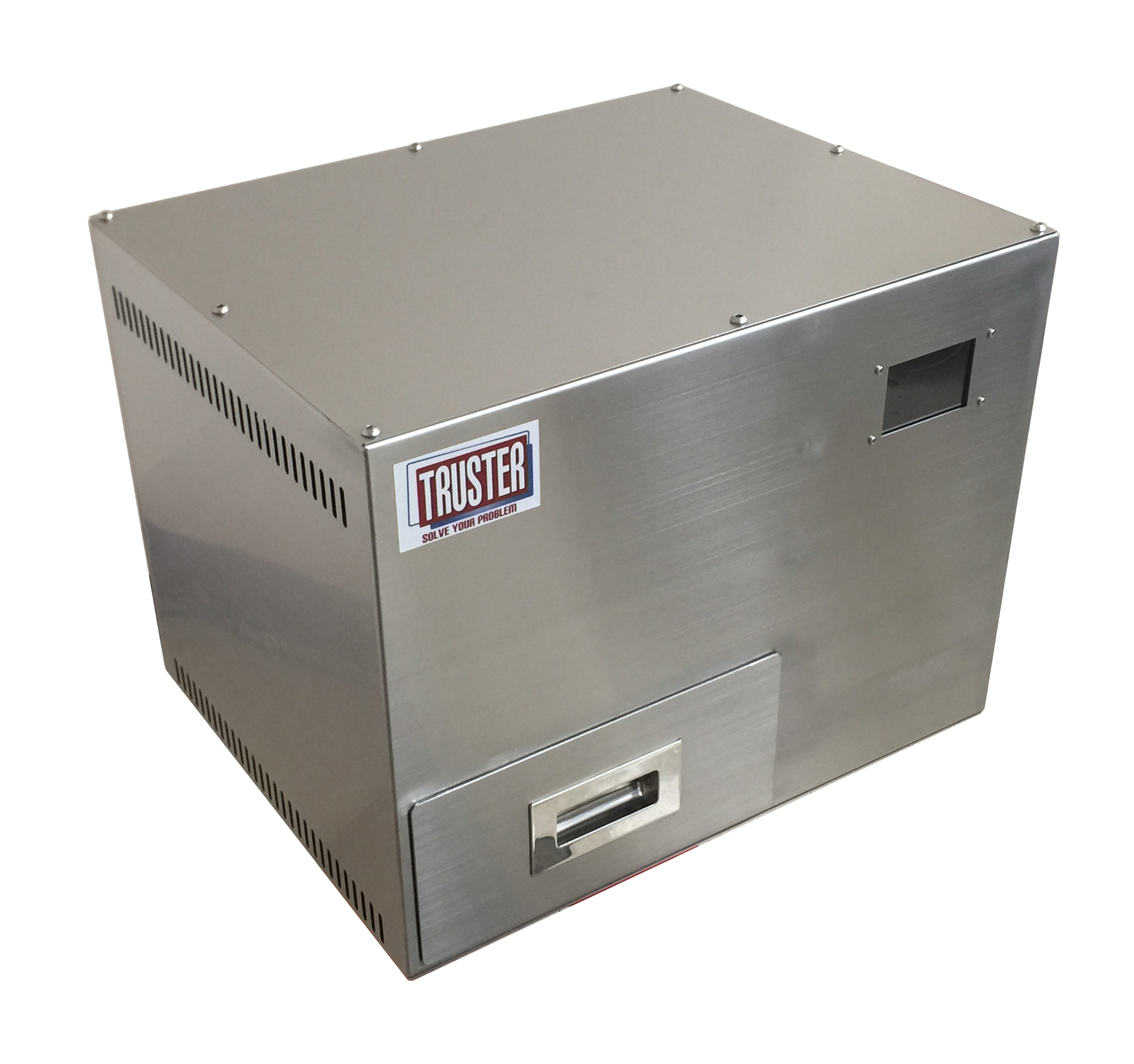

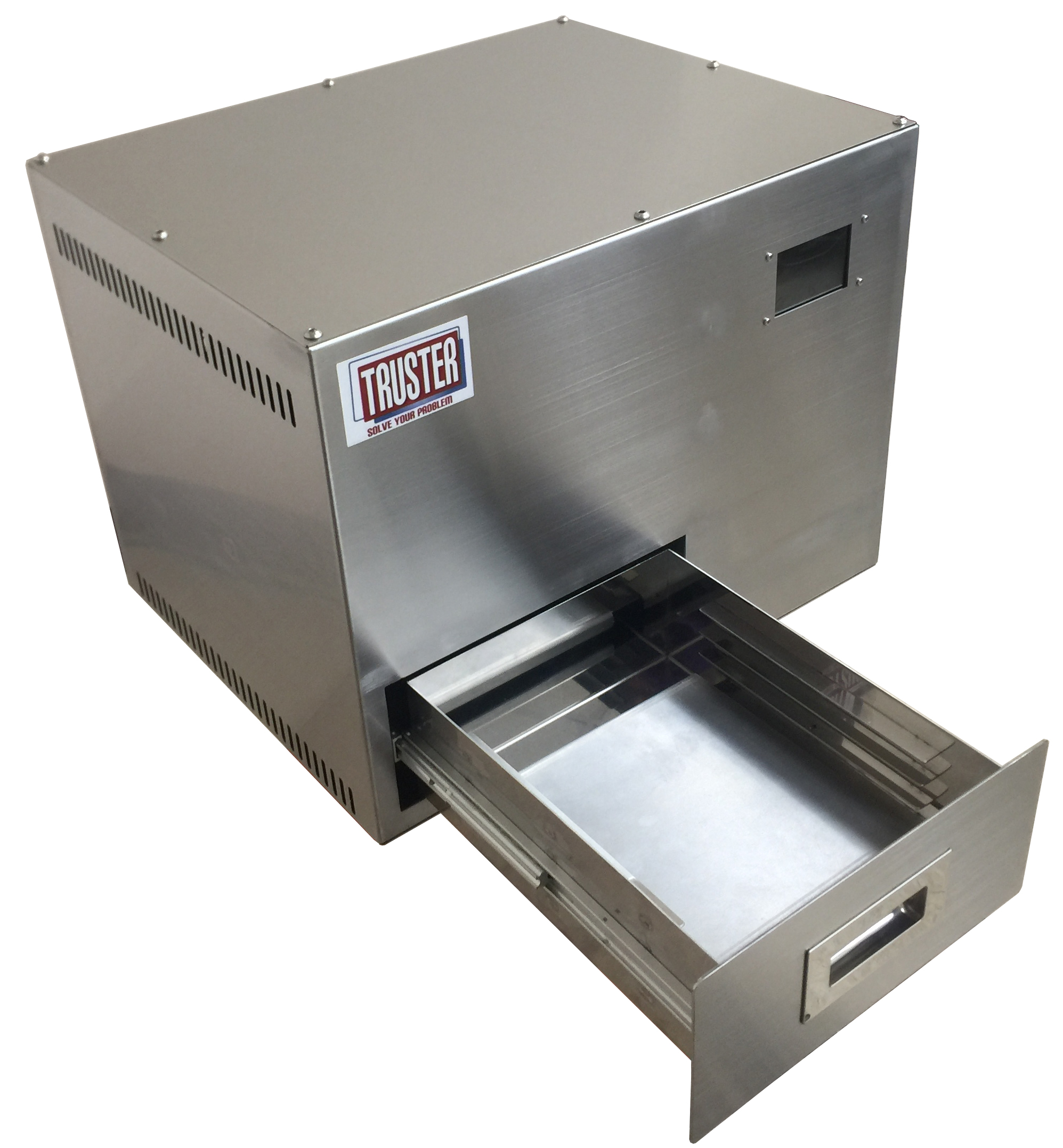

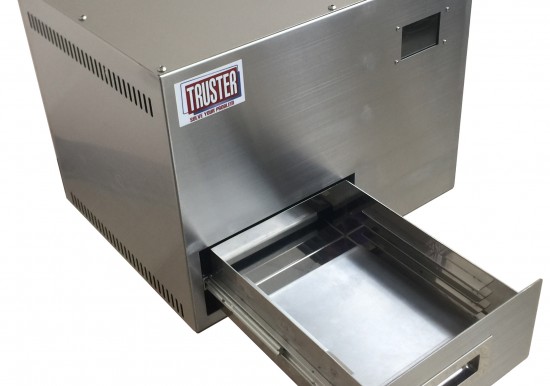

TSS 2020 UV Curing Box

♦ Adopt high quality UV LED
♦ HMI with touch screen, easy to use
♦ Effective curing area:200mm x 200mm
Contact

specification

♦ UV wavelength : 365nm / 385nm / 405nm / multiple wavelength design
♦ Uniformity >85%
♦ Fan ventilation cooling
♦ Input voltage : 110~220 VAC
♦ Easy for extension


              Model                               Working Area                                   Effective Lux
TS 1010 100mm x 300mm N: >600mW/cm2
H: >900mW/cm2
TS 4010 400mm x 100mm N: >600mW/cm2
H: >900mW/cm2
TS 1515 150mm x 150mm N: >600mW/cm2
H: >900mW/cm2
TS 2015 200mm x 150mm N: >600mW/cm2
H: >900mW/cm2
TS 2020 200mm x 200mm N: >600mW/cm2
H: >900mW/cm2
TS 2515 250mm x 150mm N: >600mW/cm2
H: >900mW/cm2
TS 3020 300mm x 200mm N: >600mW/cm2
H: >900mW/cm2
 ♦ Control unit:Analog control, PLC, HMI with touch screen
 ♦ Optional: Conveyor system
 ♦ Override : 10%~100%
