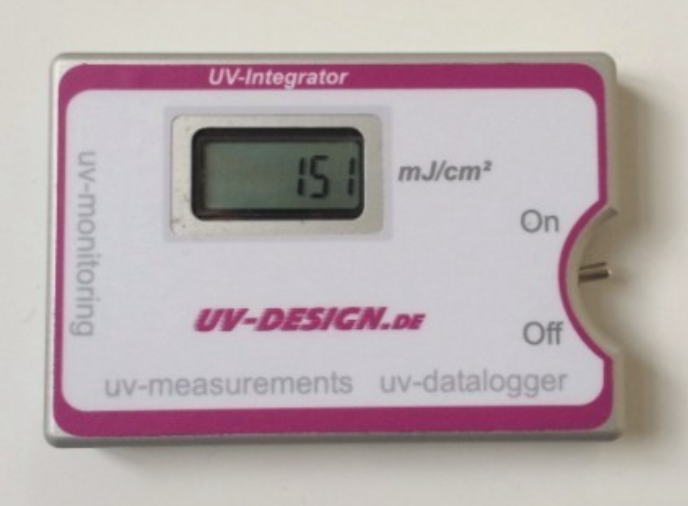

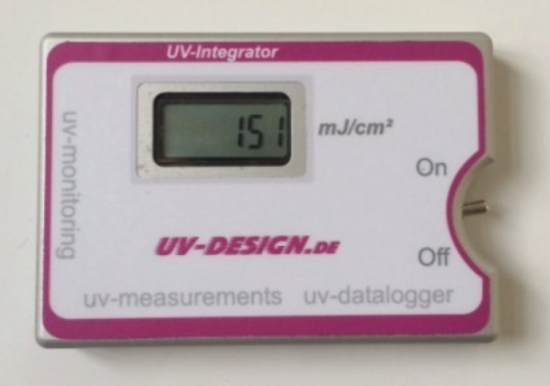

UV-Integrator 151能量計
♦ The UV-Integrator 151 is a high quality UV measuring instrument.
♦ It is used to measure UV energy of different light sources, especially on printing machines.
♦ It is ideal to ensure quality control of printing and drying processes.
♦ Small size, heavy duty pass-through Integrator with very small dimensions.
♦ It is reliable and simple to use.
產品詢問
♦ It is used to measure UV energy of different light sources, especially on printing machines.
♦ It is ideal to ensure quality control of printing and drying processes.
♦ Small size, heavy duty pass-through Integrator with very small dimensions.
♦ It is reliable and simple to use.
產品規格
♦ 量測項目: mJ/cm2

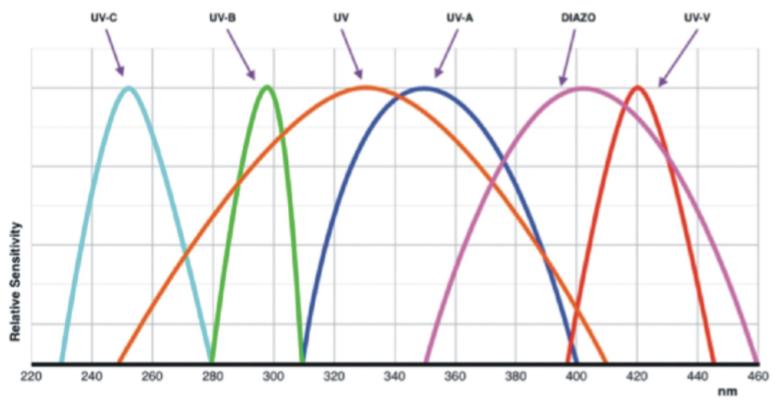

Type 1, Diazo 350 – 460 nm
Type 2, UV-A 315 – 400 nm
Type 21, UV-LED 380 – 420 nm
Type 3, UV 250 – 410 nm
Type 4, UV-B 280 – 315 nm
Type 5, UV-C 230 – 280 nm
Type 6, UV-V 395 – 445 nm
♦ Spectral range: UV 250 – 410 nm
♦ Measuring range: 0 to 5,000 mW/cm2
♦ Display: 6-digit LCD
♦ Display range: 0 to 999,999 mJ/cm2
♦ Power source: long life 3.6 V Lithium Battery
♦ Power consumption: 100 μA
♦ Battery service life: 10,000 hrs
♦ Dimensions: 3” x 2” (80 x 55 mm)
♦ Height .5” (12 mm)
♦ Weight: approx. 3.5 ounce (100 grs.)
♦ Temperature range: 0 to 45° C
♦ Heat protection: Heat shield on back plate
♦ Base Accuracy: ± 5 %
Type 1, Diazo 350 – 460 nm
Type 2, UV-A 315 – 400 nm
Type 21, UV-LED 380 – 420 nm
Type 3, UV 250 – 410 nm
Type 4, UV-B 280 – 315 nm
Type 5, UV-C 230 – 280 nm
Type 6, UV-V 395 – 445 nm
♦ Spectral range: UV 250 – 410 nm
♦ Measuring range: 0 to 5,000 mW/cm2
♦ Display: 6-digit LCD
♦ Display range: 0 to 999,999 mJ/cm2
♦ Power source: long life 3.6 V Lithium Battery
♦ Power consumption: 100 μA
♦ Battery service life: 10,000 hrs
♦ Dimensions: 3” x 2” (80 x 55 mm)
♦ Height .5” (12 mm)
♦ Weight: approx. 3.5 ounce (100 grs.)
♦ Temperature range: 0 to 45° C
♦ Heat protection: Heat shield on back plate
♦ Base Accuracy: ± 5 %
