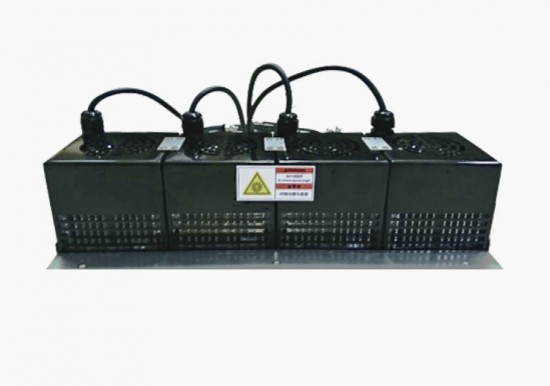

TSS 4010 UV LED Module
♦ Adopt high quality UV LED
♦ Applied area: Curing process for various kind of area such as semiconductor, optronics, solar cell.
♦ Effective curing area：400mm x 100mm
Contact
♦ Applied area: Curing process for various kind of area such as semiconductor, optronics, solar cell.
♦ Effective curing area：400mm x 100mm
specification
♦ UV wavelength : 365nm / 385nm / 405nm / multiple wavelength design
♦ Uniformity >85%
♦ Fan ventilation cooling
♦ Input voltage : 110~220 VAC
♦ Easy for extension
♦ Uniformity >85%
♦ Fan ventilation cooling
♦ Input voltage : 110~220 VAC
♦ Easy for extension
| Model | Working Area | Effective Lux |
| TS 1010 | 100mm x 300mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 4010 | 400mm x 100mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 1515 | 150mm x 150mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 2015 | 200mm x 150mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 2020 | 200mm x 200mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 2515 | 250mm x 150mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 3020 | 300mm x 200mm | N: >600mW/cm2 H: >900mW/cm2 |
| ♦ Control unit：Analog control, PLC, HMI with touch screen ♦ Optional: Conveyor system ♦ Override : 10%~100% |
||
